Trim Panel Replacement - Side Front Door

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

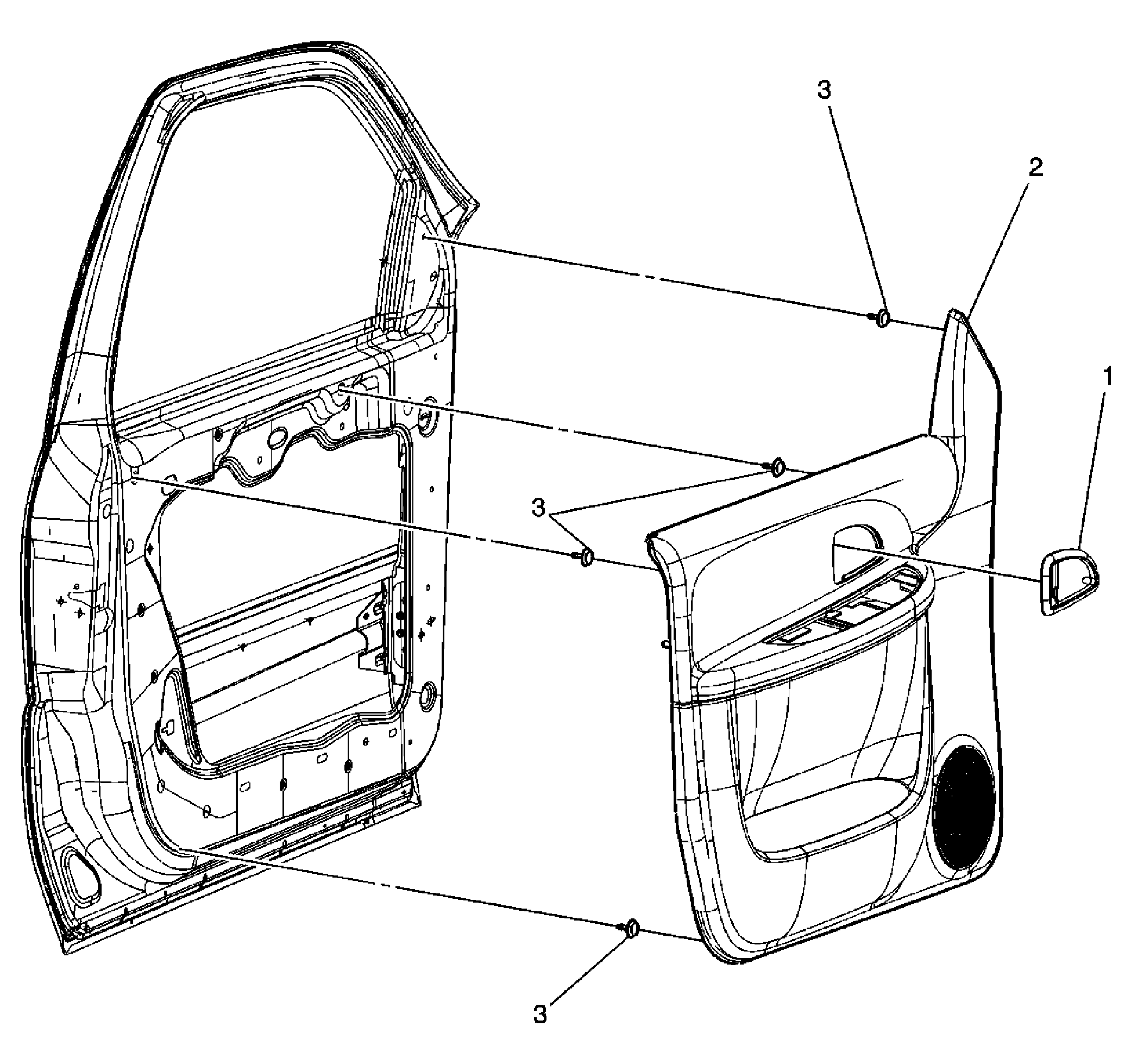

Fig 1: Replacing Trim Panel - Side Front Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the power window switch bezel. Refer to Power Window Switch Replacement - Left Front or Power Window Switch Replacement - Right Front .
1	Bezel, Door Handle
2	Panel, Door Trim Tip: Use J 38778 or J 42506 Door Trim Pad Clip Remover or equivalent to aid in the removal. See Special Tools .
3	Fastener, Door Trim Panel (Qty: 14)
