Front Bumper Fascia Replacement

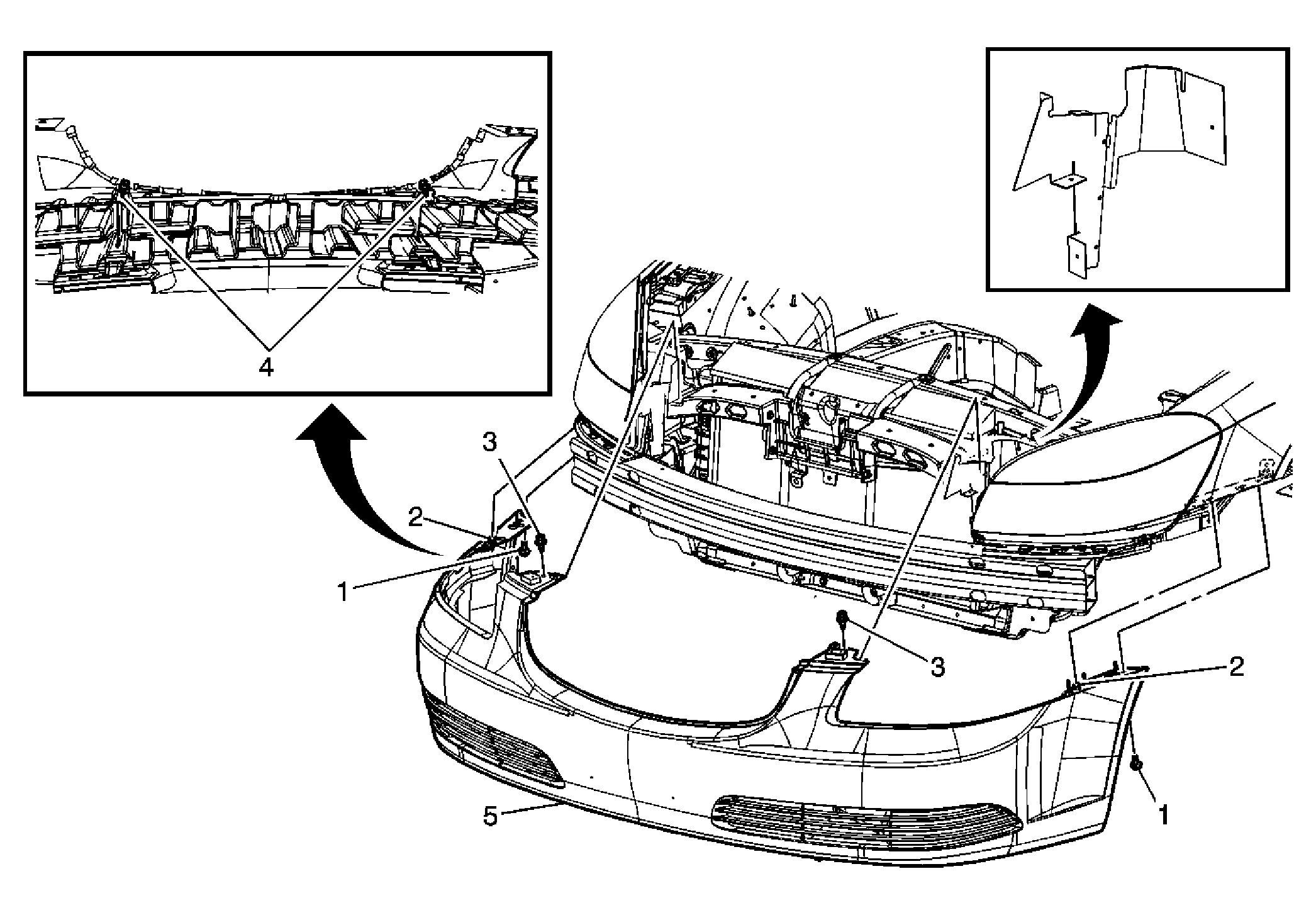

Fig 1: Identifying Front Bumper Fascia & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove front compartment sight shield. Refer to Front Compartment Sight Shields Replacement . Remove the front retainers from the wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Remove fascia grille. Refer to Fascia Grille Replacement . Remove the front air deflector. Refer to Front Air Deflector Replacement .
1	Front Fascia Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in) Tip: Access the bolt thru the wheel opening.
2	Front Fascia Nuts (Qty: 2) Tighten: 10 N.m (89 lb in) Tip: Access the nut thru the wheel opening. Loosen nut to allow stud to slide in keyhole slot in the fender flange.
3	Front Fascia Retainers (Qty: 2)
4	Front Fascia Retainers (Qty: 2)
5	Front Fascia Tip: Disconnect the fog lamp electrical connectors. Pull out on the fascia to release the tabs on the energy absorber to the impact bar. Energy absorber is attached to the front fascia. With an assistant, pull fascia forward to disengage front fascia reinforcements under headlamps and allow extraction of studs from keyhole slots in the fenders.
