Front Bumper Fascia Energy Absorber Replacement

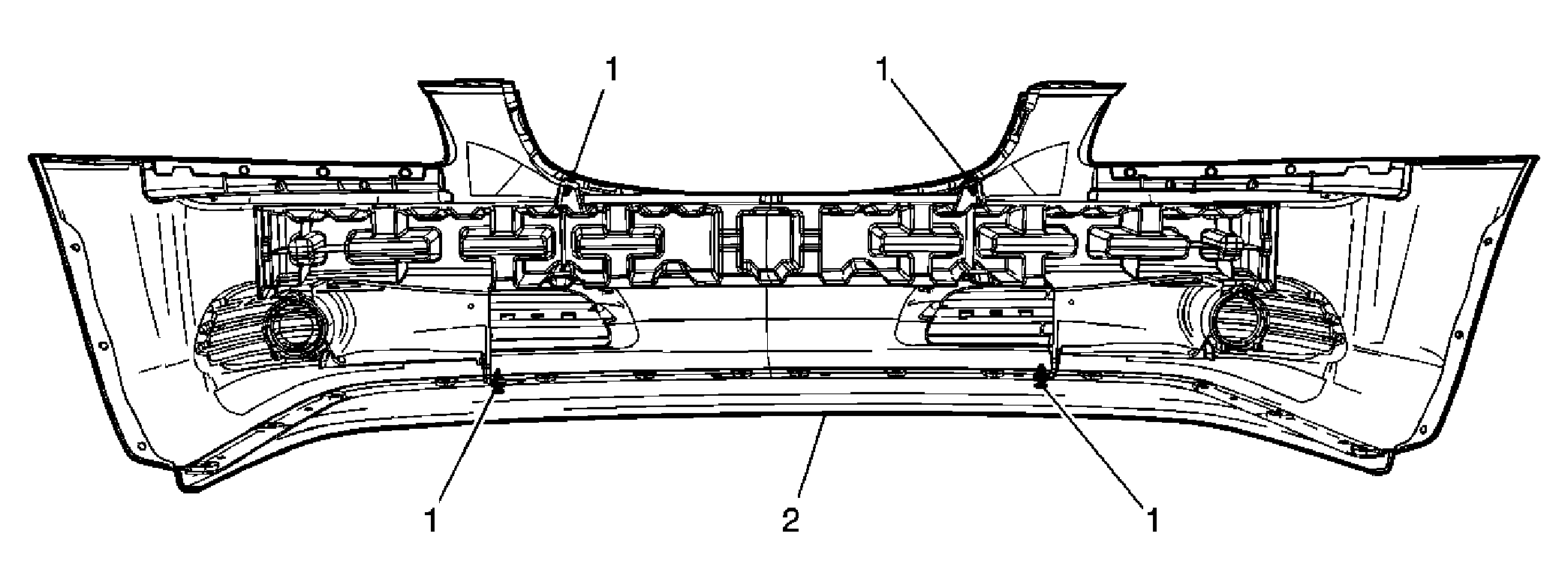

Fig 1: View Of Front Bumper Fascia Energy Absorber
GM1620803Courtesy of GENERAL MOTORS CORP.
Front Bumper Fascia Energy Absorber Replacement

Callout Component Name
Preliminary Procedure:
Remove front fascia. Refer to Front Bumper Fascia Replacement .
1 Push In Retainers (Qty: 4)
Tip:  Remove push in retainers from the energy absorber.
2 Front Energy Absorber
