Front Seat Cushion Frame Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

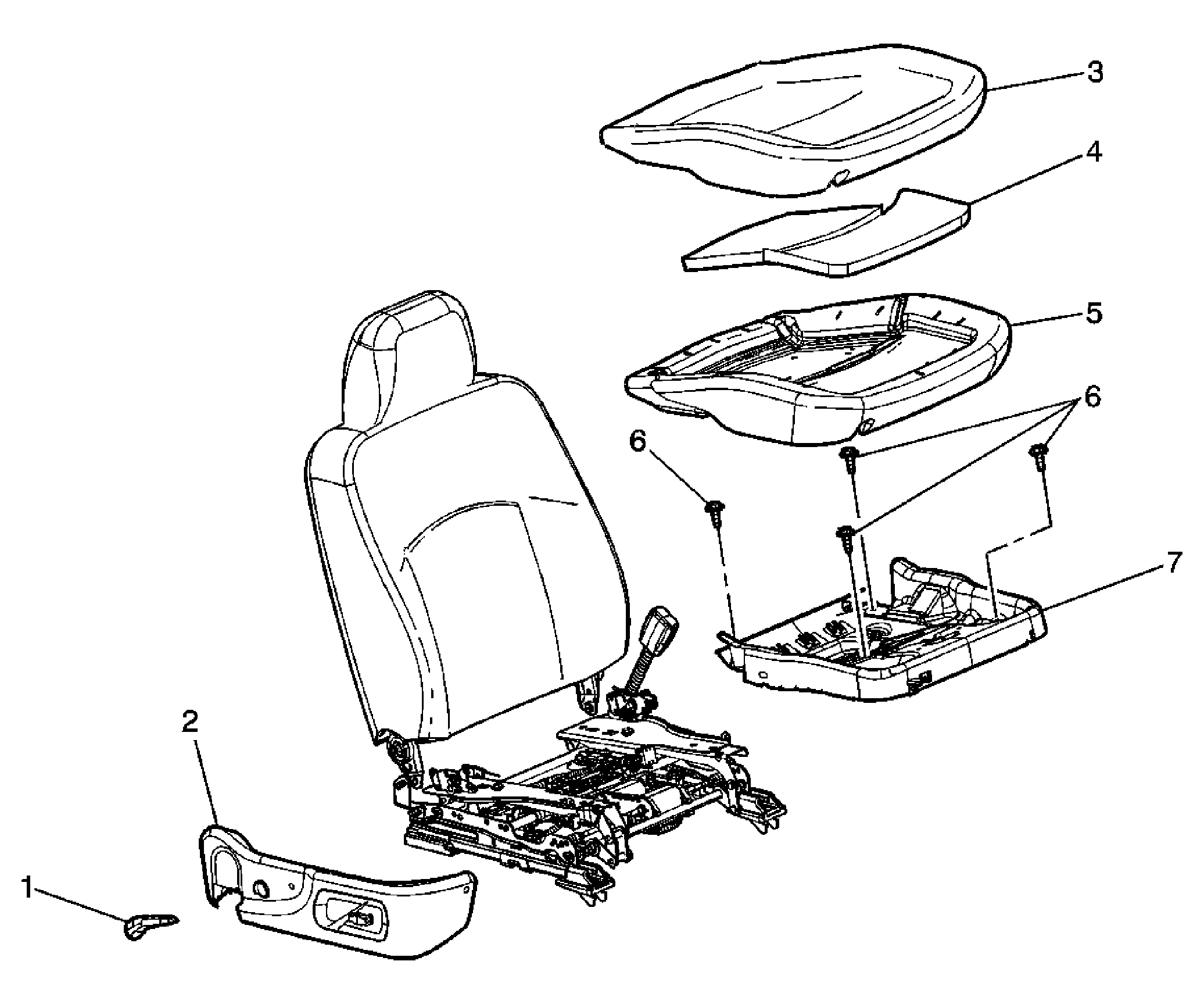

Fig 1: View Of Front Seat Cushion Frame Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front bucket seat. Refer to Front Seat Replacement - Bucket . Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Passenger Presence System Rezeroing .
1	Seat Recliner Handle Refer to Driver Seat and Passenger Seat Recliner Handle Replacement .
2	Seat Adjuster Finish Cover Refer to Front Seat Adjuster Track Finish Cover Replacement .
3	Seat Cushion Cover Refer to Front Seat Cushion Cover Replacement .
4	Seat Cushion Heater Assembly Tip: Disconnect the electrical connector.
5	Seat Cushion Pad
6	Seat Cushion Bolt (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 25 N.m (18 lb ft)
7	Seat Cushion Frame Assembly
