Front Seat Cushion Cover Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

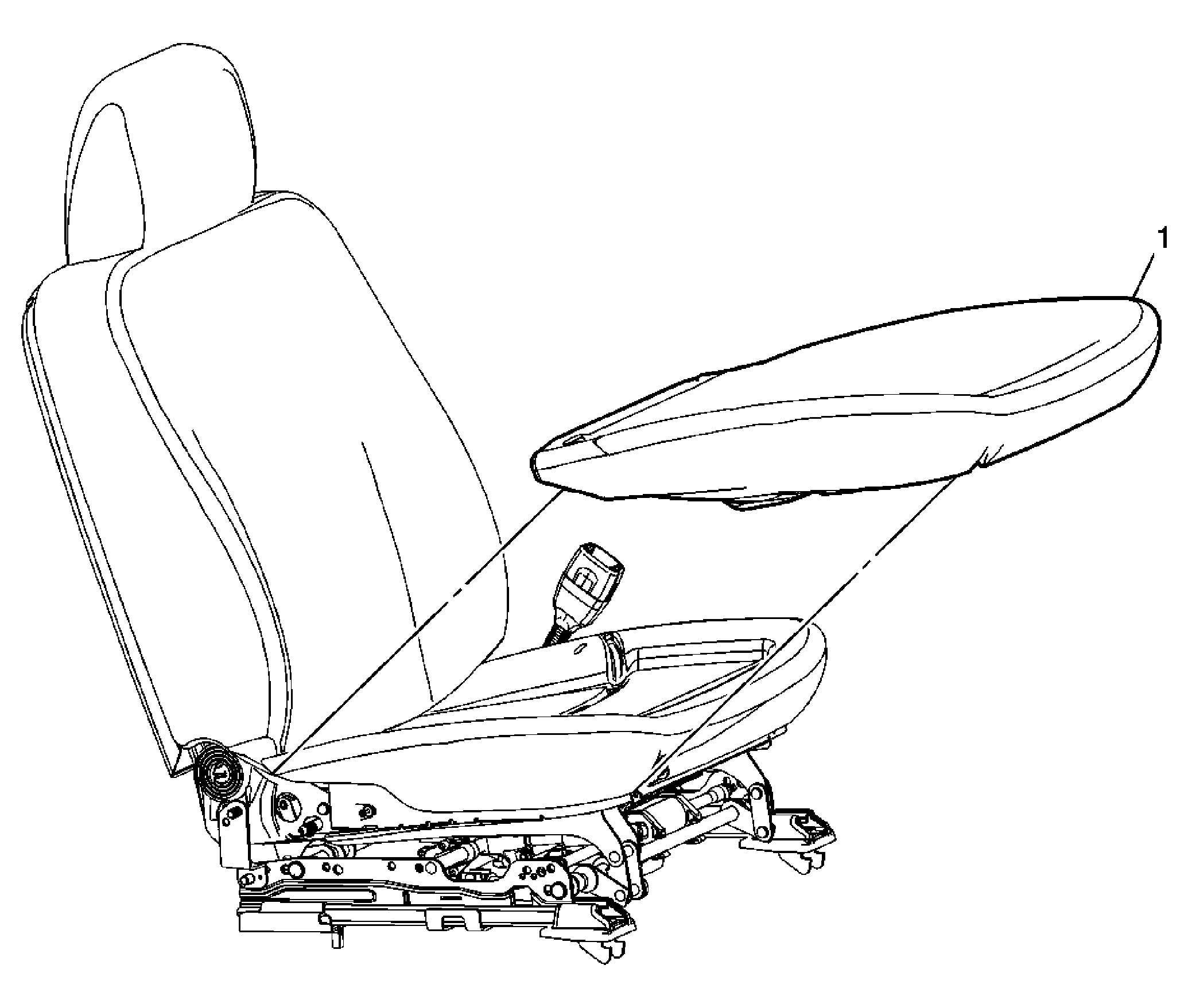

Fig 1: View Of Front Seat Cushion Cover Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. The bladder, the pressure sensor, the seat cushion, and the control module are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly. Preliminary Procedures Remove the front bucket seat. Refer to Front Seat Replacement - Bucket . Remove the front seat adjuster finish cover. Refer to Front Seat Adjuster Track Finish Cover Replacement .
1	Seat Cushion Cover Procedure Disconnect the seat cover J-channel from the seat cushion frame. If working on the passenger seat, the seat cushion pad is part of the inflatable restraint passenger presence system and must be replaced as a complete assembly. Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Passenger Presence System Rezeroing .

Callout

Component Name

CAUTION: Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. The bladder, the pressure sensor, the seat cushion, and the control module are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly.

Preliminary Procedures

Remove the front bucket seat. Refer to Front Seat Replacement - Bucket .
Remove the front seat adjuster finish cover. Refer to Front Seat Adjuster Track Finish Cover Replacement .

Seat Cushion Cover

Procedure

Disconnect the seat cover J-channel from the seat cushion frame.
If working on the passenger seat, the seat cushion pad is part of the inflatable restraint passenger presence system and must be replaced as a complete assembly.
Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Passenger Presence System Rezeroing .
