Front Seat Adjuster Track Finish Cover Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

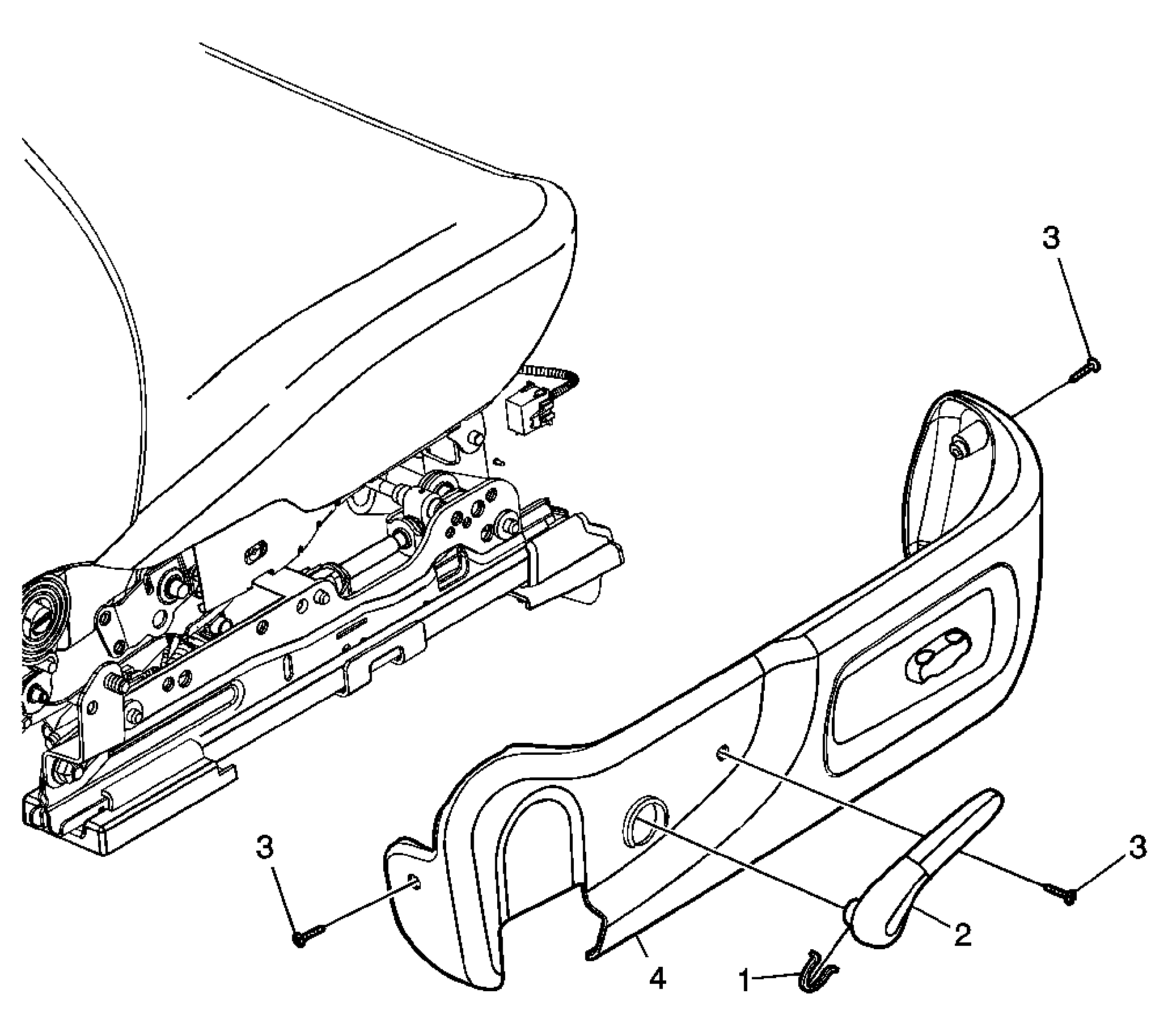

| Callout | Component Name |
|---|---|
| 1 | Seat Recliner Handle Retainer Clip |
| 2 | Seat Recliner Handle |
| 3 | Seat Adjuster Finish Cover Screw (Qty: 3)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 4 | Seat Adjuster Finish Cover Tip: Disconnect the electrical connector. |
