Removing the tension cables
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
- Battery charger connected.
NOTE:
Perform the steps on the left and right side.
Preliminary work
- Refer to REMOVING THE SEAL FOR THE WINDSHIELD PANEL .
- Refer to REMOVING THE SEAL FOR THE CONVERTIBLE TOP BRACE .
NOTE:
Description is for left component only. Procedure on the right side is identical.
CAUTION:
Folding up of convertible top through loss of pressure in hydraulic cylinders.
Injury hazard! Injury hazard by trapping!
Injury hazard! Injury hazard by trapping!
- When carrying out all repair work, secure soft top and soft top compartment lid with a suitable support tool against collapsing. Ensure soft top is supported in the middle.

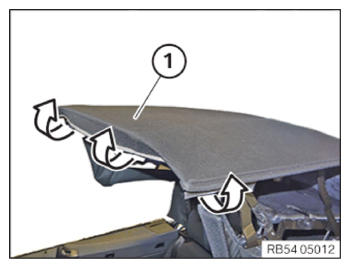

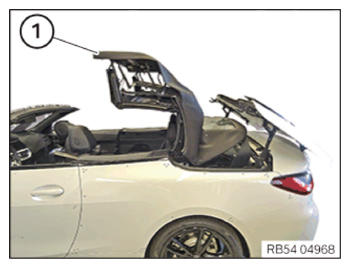

- Bring the convertible top (1) in the half opened position.
Secure the convertible top (1) from collapsing by using the support 2 452 010 if necessary.

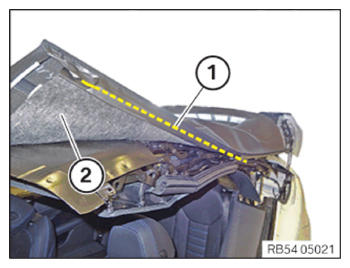

- Carefully release the adhesive tape (1) to the left and right from the convertible top bow (2).
Make sure that the convertible top fabric is not damaged when removing!

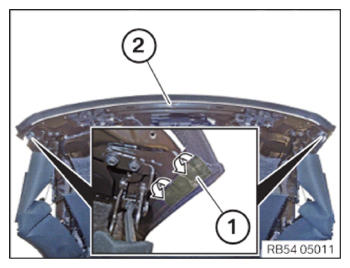

- Release the convertible top fabric (1) in arrow direction from the convertible top bow and fold it up.NOTE: Perform the steps on the left and right side.

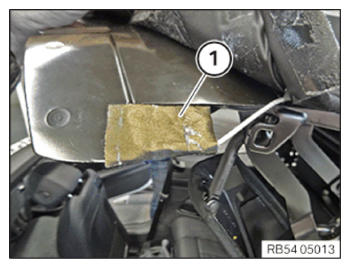

- Release adhesive tape (1).

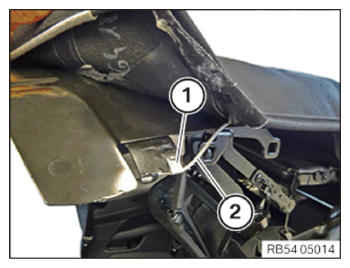

- Remove retaining clip (1).
- Detach tension cable (2).

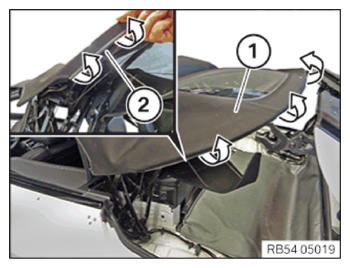

- Feed out the convertible top fabric (1) on the convertible top bow (2) and fold it upwards in arrow direction.NOTE: Perform the steps on the left and right side.
- Detach the convertible top fabric (1) at the retaining tabs (2) and feed it out in arrow direction.

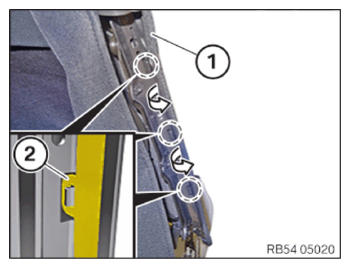

- Guide out retaining strap (1) from convertible top fabric (2).

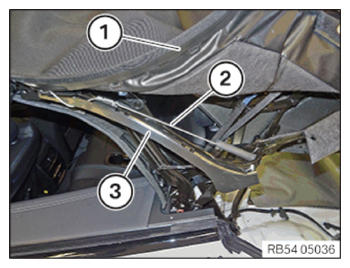

- Fold convertible top fabric (1) upwards.
- Feed out the retaining strap (2) from the convertible top linkage (3).

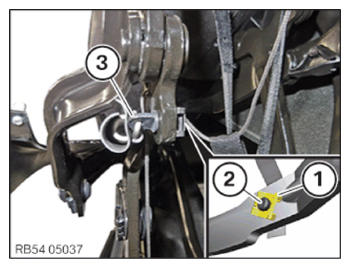

- Release the retaining clip (1).
- Feed out the bolt (2) together with the tension cable (3) and remove it.
