Installing the drivetrain for the roller sunblind
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
The roller sunblind is open.

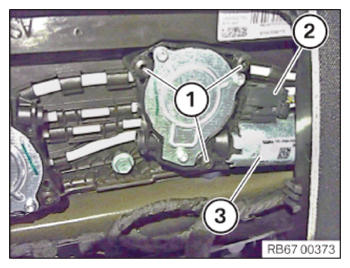

- Guide in drivetrain (3) for the roller sunblind and position it correctly.
- Connect connectors (2) and lock.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Drive motor for panorama glass roof to body | ||
| Screw | tightening torque | 5.5 Nm |
Follow-up work
- Refer to COMPLETELY INSTALLING THE SLIDING/TILTING SUNROOF .
- Refer to INSTALLING THE HEADLINING (WITH SLIDING/TILTING SUNROOF) (LOWERED) .
- Refer to TRIMMING OF THE 3RD INSTALLING THE BRAKE LIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT B-PILLAR TRIM PANEL .
- Refer to INSTALLING LEFT AND RIGHT REAR SIDE TRIM PANEL .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
- Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
- Refer to INSTALLING THE REAR SEAT .
- Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
- Refer to INSTALLING THE LEFT AND RIGHT SUN VISORS AND COUNTER SUPPORT .
- Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to INSTALLING WATER CHANNEL .
- Refer to INSTALLING WIND DEFLECTOR .
- Refer to INSTALLING GLASS SLIDE/TILT SUNROOF PANEL .
- Refer to ADJUSTING GLASS SLIDE/TILT SUNROOF PANEL .
- Refer to INSTALLING THE BELLOWS FOR THE GLASS SLIDE/TILT SUNROOF .
- Refer to INITIALIZING THE GLASS SLIDE/TILT SUNROOF .
