Install water channel
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

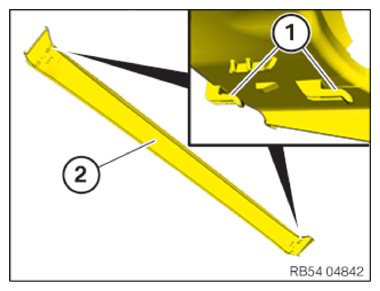

- Check the snap-in lug (1) of the water channel (2) for damage. If necessary, replace the water channel (2).

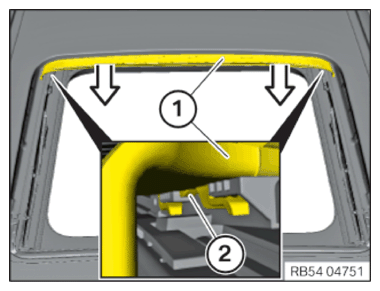

- Guide in the water channel (1) from the rear and shift it forwards until the snap-in lugs (2) snap-in.
Follow-up work
- Refer to INSTALL GLASS SLIDE/TILT SUNROOF PANEL .
- Refer to CHECKING THE SETTING OF THE GLASS SLIDE/TILT SUNROOF PANEL .
- Refer to ADJUSTING GLASS SLIDE/TILT SUNROOF PANEL .
- Refer to INITIALIZING THE GLASS SLIDE/TILT SUNROOF .
- Refer to INSTALLING THE BELLOWS FOR THE GLASS SLIDE/TILT SUNROOF .
