Completely installing the sliding/tilting sunroof

• Before installing, secure all the screws (1) with plastic washers (2), to avoid a creaking noise.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Heavy component.
  Heavy components can lead to injury or damage.

  • Remove and install heavy components with the aid of another person/other persons.
• Insert the sliding/tilting sunroof through the front passenger door into the vehicle with the help of a support person and position it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• When installing it, ensure that no cables are clamped.

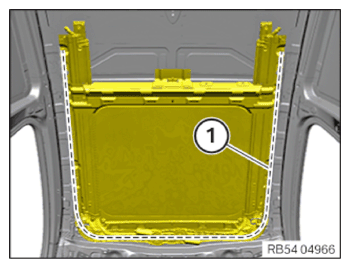

• Screw in all screws along the line (1) by several turns.

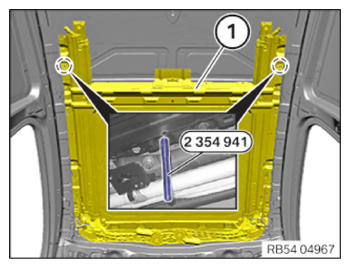

• Insert the special tool 2 354 941  and align the panoramic glass sunroof (1) with the roof.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten all screws along the marked areas (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Slide/tilt sunroof frame to body
  M6	Tightening Torque	5.4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

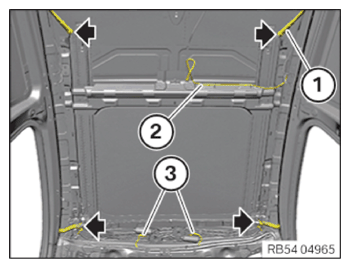

• Connect all 4 water drain hoses (1) (arrows).
• Clip in wiring harness (2) on the clips.
• Connect the connector (3) of the engines and clip in the corresponding cable.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE HEADLINING (WITH SLIDING/TILTING SUNROOF) (LOWERED) .
• Refer to TRIMMING OF THE 3RD INSTALLING THE BRAKE LIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT B-PILLAR TRIM PANEL .
• Refer to INSTALLING LEFT AND RIGHT REAR SIDE TRIM PANEL .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING THE LEFT AND RIGHT SUN VISORS AND COUNTER SUPPORT .
• Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
• Refer to INSTALLING GLASS SLIDE/TILT SUNROOF PANEL .
• Refer to ADJUSTING GLASS SLIDE/TILT SUNROOF PANEL .
• Refer to INSTALLING THE BELLOWS FOR THE GLASS SLIDE/TILT SUNROOF .
• Refer to INITIALIZING THE GLASS SLIDE/TILT SUNROOF .
