Installing the backrest covering
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

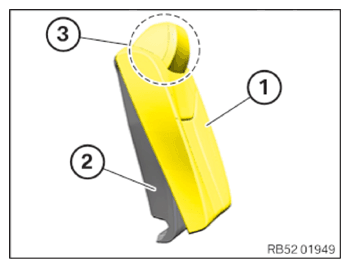

- Carefully feed the backrest covering (1) into the marked area (3) on the cushion (2) from above.

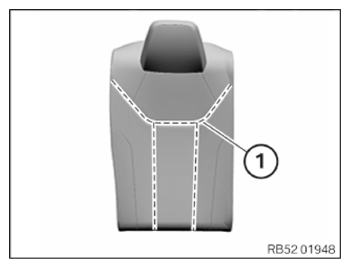

- Secure all trim wires (1) with clamps.
- Replace the clamps (2).
Parts: Clamps

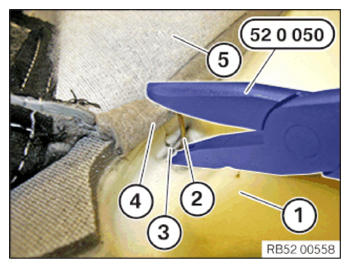

- Insert the clamp (2) with the special tool 0 492 668 (52 0 050) .
- Clasp the trim wire (3) of the cushion (1) and the trim wire (4) of the backrest covering (5) with the clamp (2) and bend the clamp (2) shut.
Follow-up work
- Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION FOR THE REAR SEAT .
- Refer to INSTALLING THE LEFT REAR SEAT BACKREST .
- Refer to INSTALLING THE CENTER REAR SEAT BACKREST .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALLING THE REAR SEAT BACKREST .
- Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
- Refer to INSTALLING THE REAR SEAT .
