Install the left rear seat backrest

Precondition

Left rear seat backrest folded down

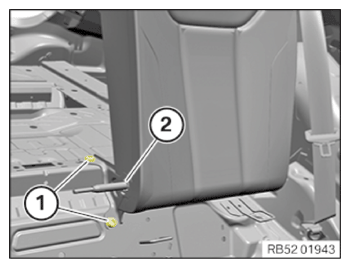

• Correctly position the left rear seat backrest (2).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Rear seat backrest on body
  screw Replace screw.	Tightening torque	42 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

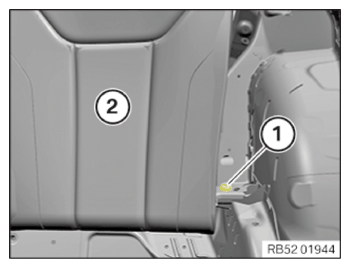

• Position the center bearing bracket (2) correctly.
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Rear seat backrest on body
  screw Replace screw.	Tightening torque	42 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER REAR SEAT BACKREST .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to INSTALLING THE REAR SEAT BACKREST .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
