When replacing the left-hand Backrest frame: Remount components
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING LEFT AND RIGHT BACKREST SIDE SECTION .
- Refer to REMOVING THE RIGHT REAR SEAT BACKREST .
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE CENTER REAR SEAT BACKREST .
- Refer to REMOVING REAR SEAT BACKREST, LEFT .
- Refer to REMOVING THE BACKREST COVERING WITH THE CUSHION FOR THE REAR SEAT .
Remove the rear panel on the left rear seat backrest

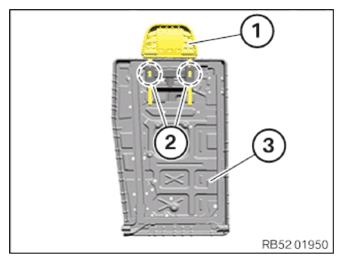

Removing the head restraint on the rear seat backrest
- Unclip the head restraint (1) in the marked area (2).
- Remove the head restraint (1) upward from the backrest frame (3).

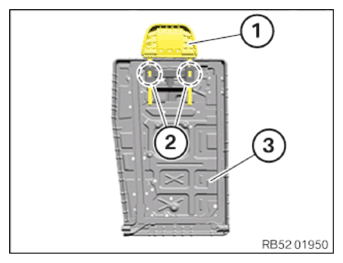

Install the head restraint on the rear seat backrest
- Correctly position the head restraint (1) from above on the backrest frame (3).
- Clip in the head restraint (1) in the marked area (2).
Install the rear panel on the left rear seat backrest

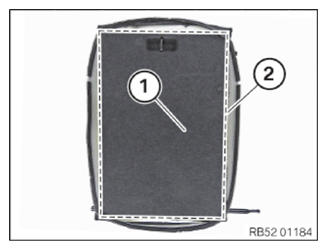

Install the rear panel on the rear seat backrest
- Position the rear panel (1).
- Clip the welt of the backrest cover in with the special tool 0 496 569 (00 9 325)
along the broken line (2).
Follow-up work
- Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION FOR THE REAR SEAT .
- Refer to INSTALLING THE LEFT REAR SEAT BACKREST .
- Refer to INSTALLING THE CENTER REAR SEAT BACKREST .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALLING THE REAR SEAT BACKREST .
- Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
- Refer to INSTALLING THE REAR SEAT .
