Installing the cushion support (m cfrp bucket seat)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

NOTE: Description is for left component only. Procedure on the right side is identical.

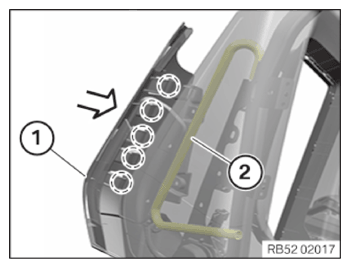

Carefully clip the seat cushion support (1) into the detents of the support tube (2) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

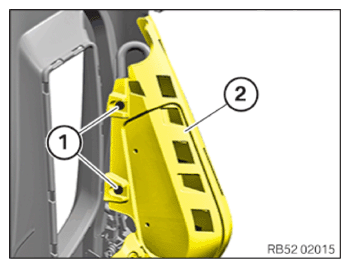

Tighten the screws (1) on the cushion support (2).

TIGHTENING TORQUE SPECIFICATIONS

Upholstered support to the backrest frame
Oval-head screw with collar	Tightening torque	6.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING BACKREST WIDTH ADJUSTMENT WITH VALVE (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE REAR APERTURE TRIM (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE FRONT APERTURE TRIM (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE EMBLEM IN THE BACKREST OF THE FRONT SEAT (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE INSERT FOR THE HEAD RESTRAINT (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE INNER COVER ON THE FRONT SEAT .
Refer to INSTALLING OUTER COVER ON FRONT SEAT .
Refer to INSTALLING DRIVER'S SEAT .
