Install backrest width adjustment with valve (M CFRP bucket seat)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

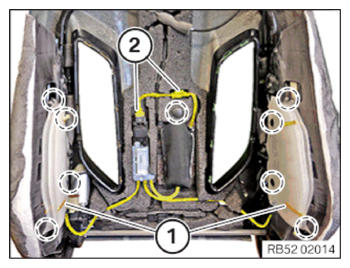

- Position the backrest width adjustment (1) with the valve as depicted.
- Position cables and lines marked in yellow in the backrest frames as depicted.
- Clip in all marked attachment points of the backrest width adjustment (1).
- Connect connectors (2) and lock.
Follow-up work
- Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE REAR APERTURE TRIM (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE FRONT APERTURE TRIM (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE EMBLEM IN THE BACKREST OF THE FRONT SEAT (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE INSERT FOR THE HEAD RESTRAINT (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE INNER COVER ON THE FRONT SEAT .
- Refer to INSTALLING OUTER COVER ON FRONT SEAT .
- Refer to INSTALLING DRIVER'S SEAT .
