Installing the front aperture trim (M CFRP bucket seat)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

Check

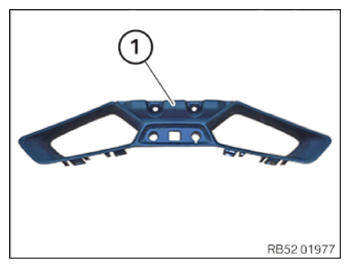

Check all detents on the front aperture trim (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» One detent is damaged.

Measure1
- Replace the front aperture trim.
NOTE: To provide a better overview: Schematic diagram with partially hidden components.

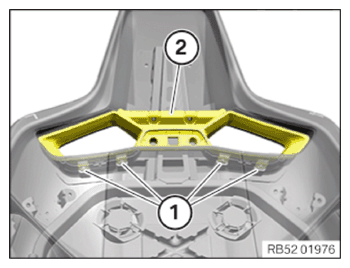

Correctly position the front aperture trim (2).
Carefully clip in the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

NOTE: Perform the steps on the left and right side.

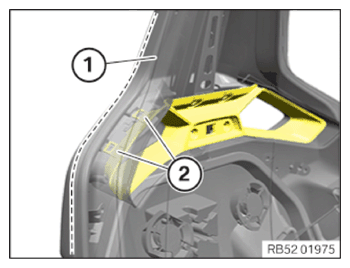

Carefully clip in the detents (2).

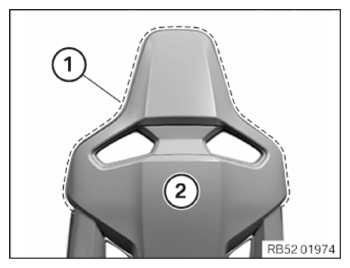

Correctly position the backrest covering (1) in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.
Carefully clip in the backrest covering (1) in the marked area into the backrest frame (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
