Removing backrest width adjustment with valve (M CFRP bucket seat)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING DRIVER'S SEAT .
Refer to REMOVING OUTER COVER ON FRONT SEAT .
Refer to REMOVING INNER COVER FROM THE FRONT SEAT .
Refer to REMOVING THE INSERT OF THE HEAD RESTRAINT (M CFRP BUCKET SEAT) .
Refer to REMOVING THE EMBLEM FROM THE BACKREST OF THE FRONT SEAT (M CFRP BUCKET SEAT) .
Refer to REMOVING THE FRONT APERTURE TRIM (M CFRP BUCKET SEAT) .
Refer to REMOVING THE REAR APERTURE TRIM (M CFRP BUCKET SEAT) .
Refer to REMOVING THE BACKREST COVERING WITH THE CUSHION (M CFRP BUCKET SEAT) .

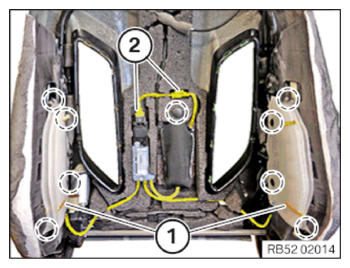

Carefully release all the marked attachment points of the backrest width adjustment (1).
Unlock plug connections (2) and disconnect.
Release the yellow-marked cables and lines from the backrest frame carefully .
Remove the backrest width adjustment with valve (1).

Courtesy of BMW OF NORTH AMERICA, INC.
