Removing the front aperture trim (M CFRP bucket seat)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .
- Protect surfaces from damage.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
Preliminary work
- Refer to REMOVING THE INSERT OF THE HEAD RESTRAINT (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE EMBLEM IN THE BACKREST OF THE FRONT SEAT (M CFRP BUCKET SEAT) .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.

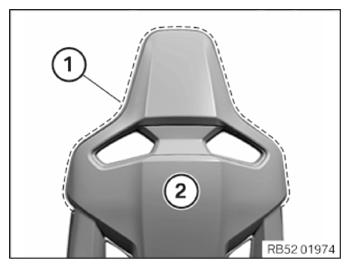

- Unclip backrest covering (1) carefully from backrest frame (2) in the marked area using a suitable tool.NOTE: To provide a better overview: Schematic diagram with partially hidden components.NOTE: Perform the steps on the left and right side.

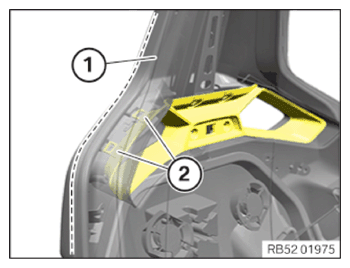

- Fold the backrest covering (1) forward in the marked area.
- Unclip detents (2) carefully using a suitable tool.NOTE: To provide a better overview: Schematic diagram with partially hidden components.

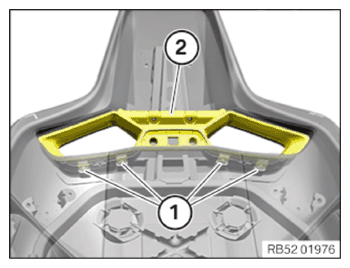

- Unclip detents (1) carefully using a suitable tool.
- Remove the front aperture trim (2).
