Remove the emblem from the backrest of the front seat (M CFRP bucket seat)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components
.
Scratches, surface damage
.
- Protect working area.
- Handle tools and components carefully.

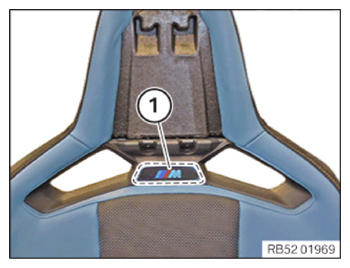

- Carefully
unclip the emblem (1) in the marked area.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

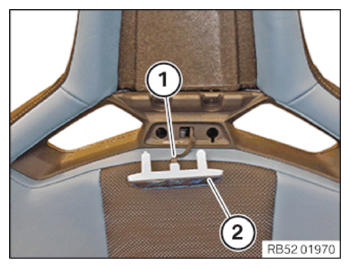

- Unlock plug connection (1) and disconnect.
- Remove the badge (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Follow-up work
