Remounting when replacing the center console

Preliminary work

• Refer to REMOVING CUP HOLDER .
• Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT TRIM .
• Refer to REMOVING THE CENTER CONSOLE TRIM .
• Refer to REMOVING THE DECORATIVE TRIM ON THE CENTER CONSOLE ON THE LEFT AND RIGHT .
• Refer to REMOVING THE WIRELESS CHARGING STORAGE .
• Refer to REMOVING THE OPERATING FACILITY IN THE CENTER CONSOLE .
• Refer to REMOVING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
• Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
• Refer to REMOVING THE CENTER ARMREST .
• Refer to REMOVING THE CENTER CONSOLE .

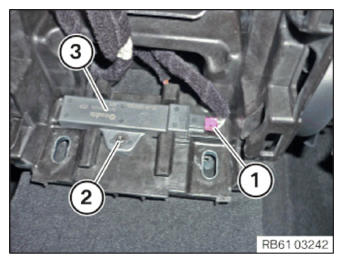

• Removing interior antenna on the rear center console

• Disconnect plug connection (1)  .
• Loosen screw (2)  .
• Remove the interior antenna (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Installing the interior antenna on the rear center console
• Connect plug (1)  .
• Correctly position the interior antenna (3)  and tighten the screw (2)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Interior antenna
  Screw	Tightening torque	2.3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

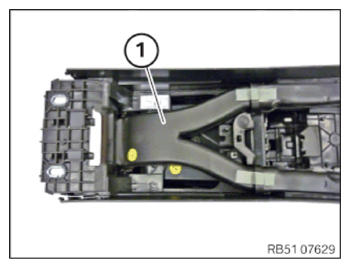

• Remove the air duct (1)  and remount the new center console.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER CONSOLE .
• Refer to INSTALLING CENTER ARMREST .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to INSTALLING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
• Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
• Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
• Refer to INSTALLING THE DECORATIVE TRIM ON THE LEFT AND RIGHT OF THE CENTER CONSOLE .
• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to INSTALLING TRIM IN STORAGE COMPARTMENT OF CENTER ARMREST .
• Refer to INSTALLING THE CUP HOLDER .
