Install center armrest

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Feed in the center armrest into the center console and position correctly.

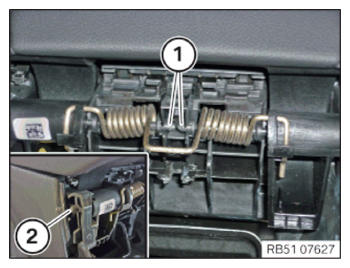

Insert the pins (1) and slide them into the center console with the gearing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

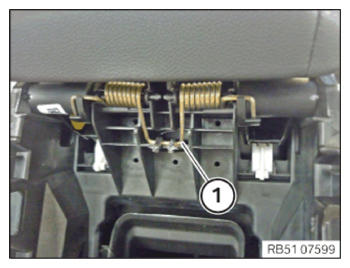

Open the center armrest so that the spring (1) is released.
Use a pair of long-nose pliers to lift the spring (1) over the snap-in lugs and hang it in place.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
