Removing the center armrest
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
Precondition
Center armrest is open.

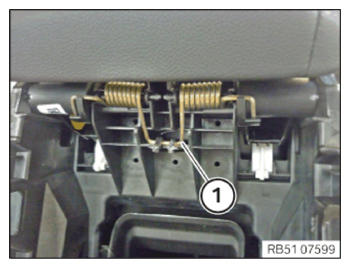

- Open the center-armrest so that the spring is relaxed (1).
- Lift the spring (1) with long-nose pliers above the retaining lugs and detach.

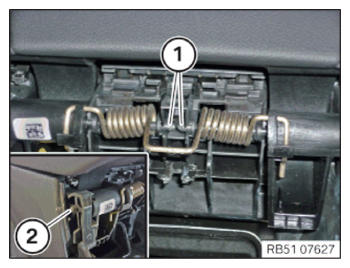

- Press pins (1) with a screwdriver outwards.
- Pull out the pins (1) with long-nose pliers at the gearing (2) completely from the center console.
- Feed out the center armrest towards rear from the center console and remove.
