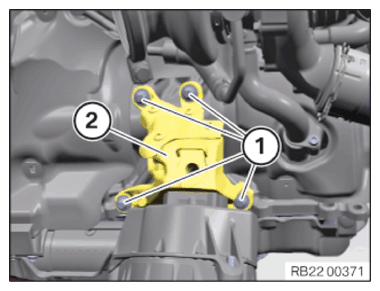

Removing the right engine mount holder
WARNING:
Heavy component falling down or tipping.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before lowering or removing the front axle: Secure the engine in the installation position.
- For additional information see: 11 00 670 SECURING ENGINE IN INSTALLATION POSITION .
WARNING:
Car may slip off the vehicle hoist where components are supported.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Secure the vehicle hoist against lowering and lifting.
- Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
WARNING:
Car may slip off the vehicle hoist if the weight is distributed unevenly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Ensure there is a specific weight compensation on the car.
Preliminary work
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING WINDSHIELD PANEL COVER .
- Refer to REMOVING THE CENTER COWL UPPER PART .
- Refer to REMOVING THE LATERAL HOOD SEALS .
- Refer to REMOVING THE SIDE PANEL SEAL .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING ACOUSTIC COVER AT REAR .
- Refer to REMOVING ALL IGNITION COILS .
- Refer to REMOVING FUEL DELIVERY LINE .
- Refer to REMOVING THE CLEAN AIR PIPE WITH THE RESONATOR .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
