Remove steering wheel
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
TECHNICAL INFORMATION
The steering wheel and horn plate must be replaced if the airbag unit has been deployed.
Check all steering wheel attachments (such as switches, cover, shift paddles, wiring harness) for damage and replace if necessary!
For additional information see: PROCEDURE AFTER AIRBAG DEPLOYMENT AS RESULT OF AN ACCIDENT .
The steering wheel and horn plate must be replaced if the airbag unit has been deployed.
Check all steering wheel attachments (such as switches, cover, shift paddles, wiring harness) for damage and replace if necessary!
For additional information see: PROCEDURE AFTER AIRBAG DEPLOYMENT AS RESULT OF AN ACCIDENT .
NOTE:
TECHNICAL INFORMATION
Wheel alignment is not necessary after removal, installation or replacement.
Wheel alignment is not necessary after removal, installation or replacement.
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to REMOVING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
- Refer to IF INSTALLED: REMOVING SHIFT PADDLES FOR AUTOMATIC TRANSMISSION .
- Refer to INSTALLING THE COVER FOR THE SPORT STEERING WHEEL .
- Refer to REMOVING WIRING HARNESS .
NOTE:
TECHNICAL INFORMATION
When releasing the screw, have a support person brace the steering wheel in order to reduce torque on the steering column!
When releasing the screw, have a support person brace the steering wheel in order to reduce torque on the steering column!
- Shift the steering wheel and wheels to the straight-ahead position.

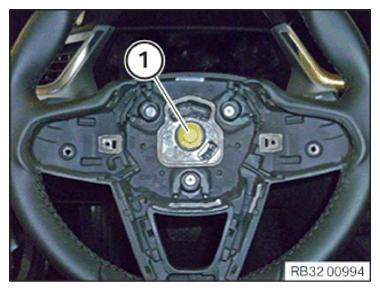

- Release the screw (1) and remove the steering wheel.
