Remove wiring harness

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

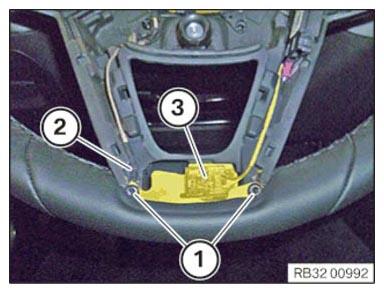

Disconnect the plug connection for the vibration actuator.
Loosen screws (1).
Loosen grounding cable (2) from steering wheel.
Remove vibration actuator (3).

Courtesy of BMW OF NORTH AMERICA, INC.

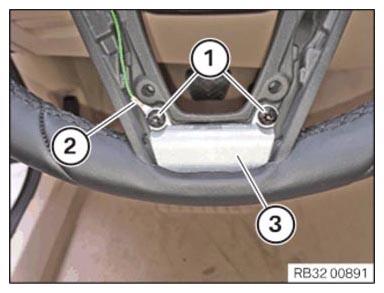

Loosen screws (1).
Loosen grounding cable (2) from steering wheel.
Remove the balance weight (3) if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

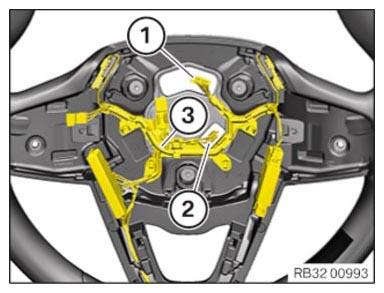

Unlock plug connection (1) and disconnect.
Unlock and disconnect the plug connection (2) if necessary.
Loosen and remove wiring harness (3) from steering wheel.

Courtesy of BMW OF NORTH AMERICA, INC.
