Installing the control unit for locking differential

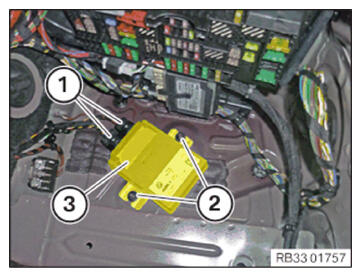

- Position control unit (3).
- Tighten nuts (2).TIGHTENING TORQUE SPECIFICATION
Control unit for the locking differential Plastic nut with flange Tightening torque 3 Nm M6 Tightening torque 8 Nm - Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
- Refer to IF PROGRAMMING/CODING HAS FAILED: READING DATA FROM REAR AXLE DIFFERENTIAL .
- Refer to WHEN REPLACING (CONTROL UNIT): PERFORMING SERVICE FUNCTION "SELF-LOCKING DIFFERENTIAL CONTROL UNIT REPLACEMENT" .
