If programming/coding has failed: Reading data from rear axle differential

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
If the individual data recovery for the GHAS control unit failed, the data must be read from the sticker on the rear axle differential and entered using the keyboard. Reading the data using an endoscope (see special tool).

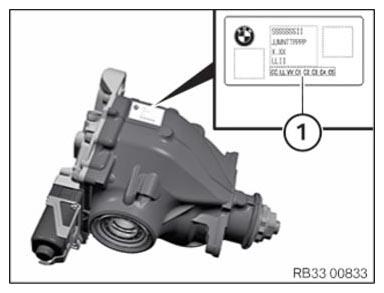

Data (1) from the sticker by using the special tool 2 468 296 or 2 468 102 .

Courtesy of BMW OF NORTH AMERICA, INC.
