Install rear anti-roll bar

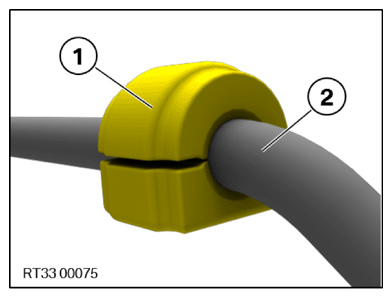

- Apply lubricant to the outer sides of the rubber mounts (1) at the rear anti-roll bar (2).CONSUMABLE SPECIFICATION
Installation aid

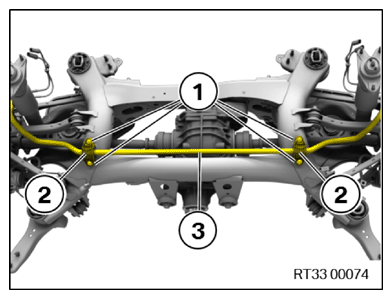

(Circo Light; lubricant)250 ml, Bottle 83192405829 - Position rear anti-roll bar (3).
- Position the retainer (2).
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION
Rear anti-roll bar retainer on rear axle support M8
Replace screws.Tightening torque 28 Nm
Follow-up work
- Refer to FASTENING THE REAR LEFT AND RIGHT ANTI-ROLL BAR LINK ON THE ANTI-ROLL BAR .
- Refer to LIFTING REAR AXLE SUPPORT .
- Refer to MOUNTING THE REAR AXLE SUPPORT .
- Refer to FASTENING THE WIRING HARNESS TO THE M SPORT DIFFERENTIAL .
- Refer to ATTACHING THE BRAKE CALIPER ON THE LEFT AND RIGHT .
- Refer to INSTALLING LEFT AND RIGHT COIL SPRING .
- Refer to FASTENING THE REAR LEFT AND RIGHT SHOCK ABSORBER TO THE BODY .
- Refer to SECURING CABLE OF REAR LEFT AND RIGHT WHEEL SPEED SENSOR .
- Refer to FASTENING THE CABLE FOR THE RIDE HEIGHT SENSOR ON THE REAR AXLE SUPPORT .
- Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
- Refer to INSTALLING THE REAR HEAT SHIELD .
- Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
- Refer to INSTALLING REINFORCEMENT STRUT .
- Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
- Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
- Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
