Fastening the rear left and right anti-roll bar link on the anti-roll bar
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the left and right side.

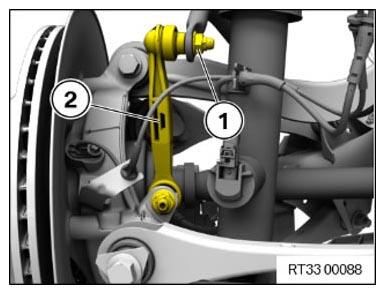

Fastening the rear anti-roll bar link to the anti-roll bar
- Position anti-roll bar link (2).
- Replace nut (1).
Parts: Nut
- Tighten nut (1). If necessary, counter support at the Torx socket.
TIGHTENING TORQUES SPECIFICATION
| Rear anti-roll bar link to anti-roll bar/wheel carrier | ||
| M10 Replace nut. |
tightening torque | 56 Nm |
