Install the coil springs

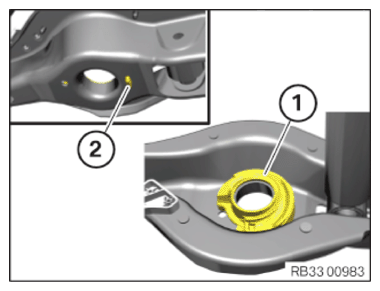

• Check lower spring pad (1) for damage, replace if necessary.
• Check the position of the lower spring pad (1) with the plastic tab (2) on the camber control arm, correct if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

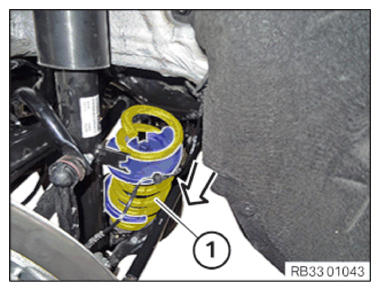

• Insert and position the coil spring (1) from above in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the coil spring (1) in such a way that the coil spring end is in form-fit contact with the lower spring pad (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the spring pad at the top (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the upper spring pad on the coil spring (1) such that the coil spring end (2) is in form-fit contact with the upper spring pad.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slacken the coil spring with the special tools 0 494 997 (33 5 016) and 0 494 934 (33 5 020)  . Provide counter support to the spindle using special tool 0 494 998 (33 5 017) and standard tool (1) in the  process.

  Standard tool: 3/8" reversible ratchet

  3/8" reversible ratchet

  Courtesy of BMW OF NORTH AMERICA, INC.

  Courtesy of BMW OF NORTH AMERICA, INC.

  3/8" reversible ratchet

  Pay attention to the installation position when releasing the coil spring, correct if necessary.

• Remove the special tools.

Follow-up work

• Refer to SECURING THE REAR SHOCK ABSORBER ON THE BODY .
• Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM .
• Refer to INSTALLING REAR LEFT OR RIGHT WHEEL .
