Securing the rear shock absorber on the body
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

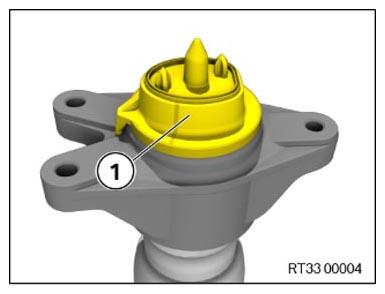

- Check centering plate (1) for damage and, if necessary, replace it.
- Check the position of centering plate (1) and, if necessary, correct it.WARNING: Car may slip off the vehicle hoist where components are supported.
Danger! Immobilization period-threatening injuries!- Secure the vehicle hoist against lowering and lifting.
- Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.

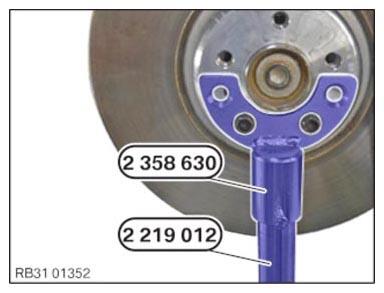

- Insert special tool 2 219 012
into special tool 2 358 630
.
- Lift the wheel carrier slightly using special tool 2 219 012
. Position the shock absorber on the body in the process.
Do not press against the spring force of the coil spring.

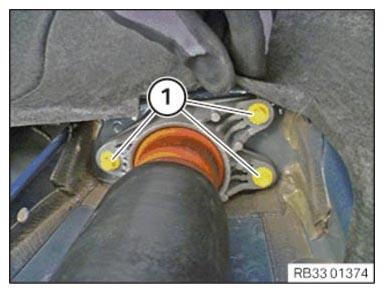

- Replace screws (1).
Parts: Screws
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Nut and locknut/self-locking nut M8x40
Replace screws.tightening torque 28 Nm - Disconnect the special tool 2 219 012 and set it aside.

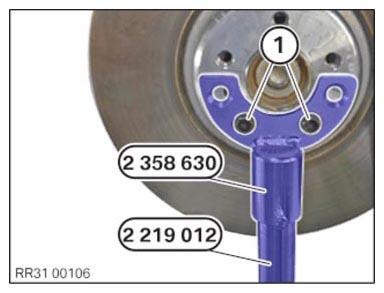

- Release lug bolts (1).
- Remove special tool 2 358 630
.NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

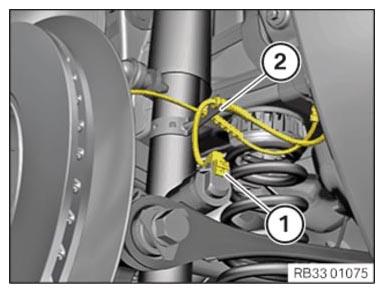

- Attach all the cables to holder (2).
- Connect connectors (1) and lock.
- Check centering plate (1) for damage and, if necessary, replace it.
- Check the position of centering plate (1) and, if necessary, correct it.WARNING: Car may slip off the vehicle hoist where components are supported.
Danger! Immobilization period-threatening injuries!- Secure the vehicle hoist against lowering and lifting.
- Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.

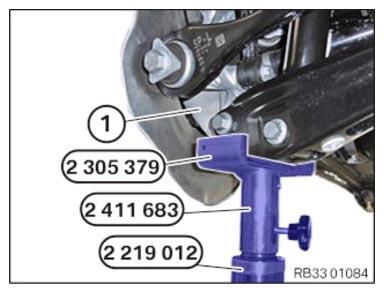

- Position special tool 2 219 012
with special tools 2 411 683
and 2 305 379
under wheel carrier (1).
- Lift the wheel carrier slightly using special tool 2 219 012
. Position the shock absorber on the body in the process.
Do not press against the spring force of the coil spring.
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Nut and locknut/self-locking nut M8x40
Replace screws.tightening torque 28 Nm NOTE: The following step(s) must be performed if the specified component(s) is/are installed. - Attach all the cables to holder (2).
- Connect connectors (1) and lock.
