Installing the rear rubber mount for the left and right rear axle support

NOTE: RISK OF DAMAGE
Damage to the rear axle support.
Damage to the rear axle support due to non-compliance with the direction of extraction and the direction of insertion of the rubber mount.

Adherence to the pull-out and pull-in direction is absolutely mandatory.

NOTE: Perform the steps on the left and right side.

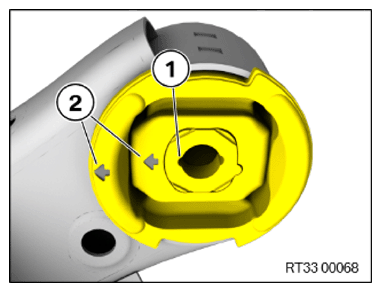

Make sure that the notch (1) and arrows (2) of the rear rubber mount point in the driving direction.

Courtesy of BMW OF NORTH AMERICA, INC.

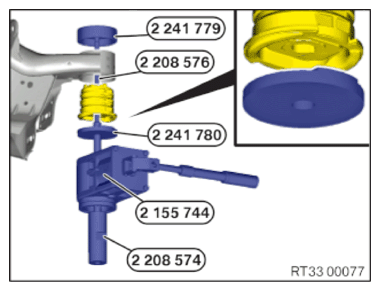

Align the recesses at special tool 2 241 780 with the rubber mount.
Fully retract rear rubber mount with special tools 2 241 779, 2 155 744, 2 241 780, 2 208 574 and 2 208 576 .
Remove special tools for inserting rubber mount (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to LIFTING REAR AXLE SUPPORT .
Refer to MOUNTING THE REAR AXLE SUPPORT .
Refer to FASTENING THE WIRING HARNESS TO THE M SPORT DIFFERENTIAL .
Refer to ATTACHING THE BRAKE CALIPER ON THE LEFT AND RIGHT .
Refer to INSTALLING LEFT AND RIGHT COIL SPRING .
Refer to FASTENING THE REAR LEFT AND RIGHT SHOCK ABSORBER TO THE BODY .
Refer to SECURING CABLE OF REAR LEFT AND RIGHT WHEEL SPEED SENSOR .
Refer to FASTENING THE CABLE FOR THE RIDE HEIGHT SENSOR ON THE REAR AXLE SUPPORT .
Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
Refer to INSTALLING THE REAR HEAT SHIELD .
Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
Refer to INSTALLING REINFORCEMENT STRUT .
Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
