Installing the control arm

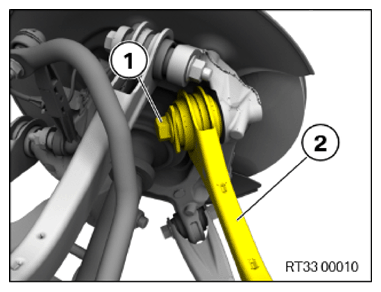

• Position the control arm (2)  .
• Replace the screw (1)  .

  Parts:  Screw

• Screw in screw (1)  several turns.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The screw connection is tightened later in the NORMAL POSITION with the torque wrench.

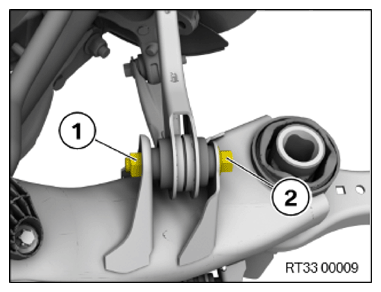

• Replace the screw (2)  and the nut (1)  .

  Parts:  Screw, nut

• Insert screw (2)  .
• Tighten the nut (1)  hand-tight.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The screw connection is tightened later in the NORMAL POSITION with the torque wrench.
• Tighten screw (1)  by hand.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to LIFTING REAR AXLE SUPPORT .
• Refer to MOUNTING THE REAR AXLE SUPPORT .
• Refer to FASTENING THE WIRING HARNESS TO THE M SPORT DIFFERENTIAL .
• Refer to ATTACHING THE BRAKE CALIPER ON THE LEFT AND RIGHT .
• Refer to INSTALLING LEFT AND RIGHT COIL SPRING .
• Refer to FASTENING THE REAR LEFT AND RIGHT SHOCK ABSORBER TO THE BODY .
• Refer to SECURING CABLE OF REAR LEFT AND RIGHT WHEEL SPEED SENSOR .
• Refer to FASTENING THE CABLE FOR THE RIDE HEIGHT SENSOR ON THE REAR AXLE SUPPORT .
• Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
• Refer to INSTALLING THE REAR HEAT SHIELD .
• Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
• Refer to INSTALLING REINFORCEMENT STRUT .
• Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
• Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
• Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
• Refer to MEASURING THE RIDE HEIGHT OF THE REAR AXLE AND SETTING THE NORMAL POSITION .
• Refer to TIGHTENING THE SCREW CONNECTIONS ON THE CONTROL LINK .
• Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
