Remove left output shaft
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
Preliminary work
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to LOOSENING THE OUTPUT SHAFT FROM THE WHEEL BEARING .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THRUST FIELD .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
NOTE:
Counter-hold at the Torx socket.

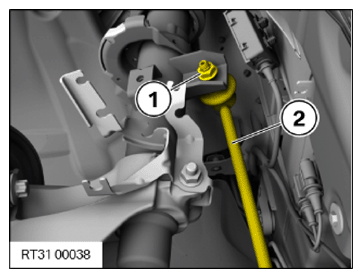

- Detach the anti-roll bar link (2) from the spring strut.
- Turn swivel bearing outwards.
- Set aside the anti-roll bar link (2).

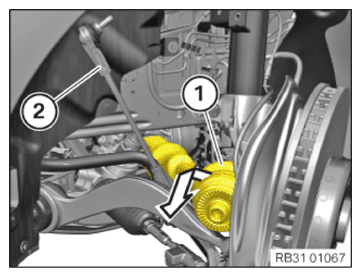

- Guide out the output shaft (1) from the swivel bearing.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

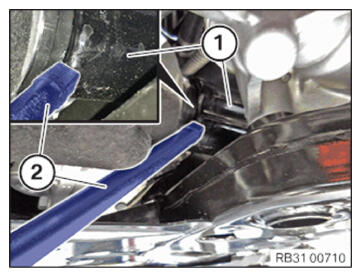

- Position the aluminum drift (2) on the output shaft (1).
- Knock out the output shaft (1) from the front differential with an aluminum mandrel (2).

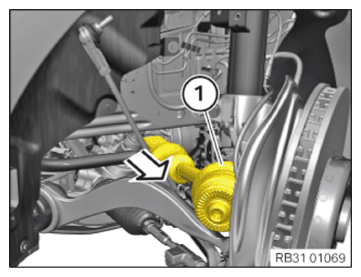

- Remove the output shaft (1) in the direction of the arrow.
