Remove the anti-roll bar link
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
Description is for left component only. Procedure on the right side is identical.

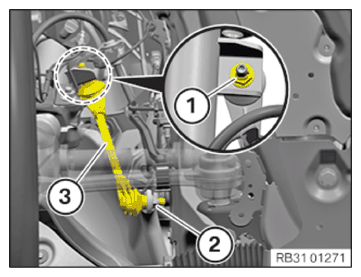

- Release the nuts (1) and (2). If necessary, counter support at the Torx socket.
- Remove the anti-roll bar link (3).
