Removing the wishbone
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
Preliminary work
- Refer to REMOVING FRONT LEFT OR RIGHT WHEEL .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to RELEASING THE RIDE HEIGHT SENSOR FROM THE LOWER WISHBONE .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .

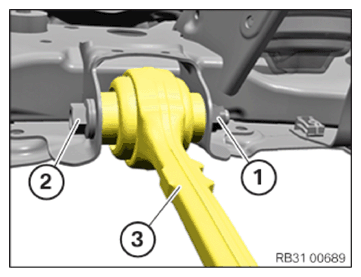

- Loosen screw (2). In doing so, counter support at the nut (1).
- Loosen the wishbone (3) from the front axle support.

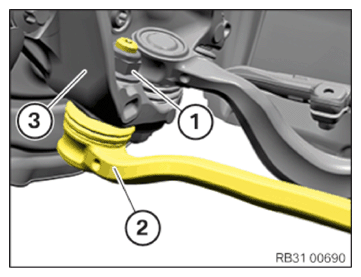

- Release nut (1). If necessary, counter support at the Torx socket.
- Release the wishbone (2) from the swivel bearing (3) and remove.
