Installing crash lever

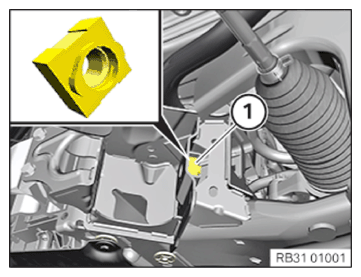

Replace the cage nut (1).
Parts: Cage nut

G15912733

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

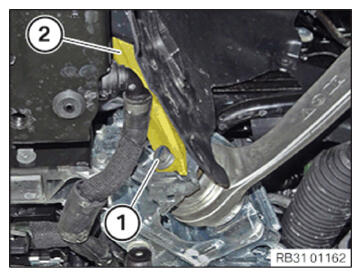

Position the tension strut and crash lever (2) on the front subframe.
Replace the screw (1).
Parts: Screw
Feed in screw (1) and tighten hand-tight.
The screw connection is tightened later in NORMAL POSITION .

G15912734

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to MEASURING THE RIDE HEIGHT OF THE FRONT AXLE AND ADJUSTING THE NORMAL POSITION .
Refer to TIGHTENING THE SCREW CONNECTION OF THE TENSION STRUT ON THE FRONT SUBFRAME .
Refer to INSTALLING BOTTOM FRONT COVER FROM THE SIDE .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
