Tightening the screw connection of the tension strut on the front subframe

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

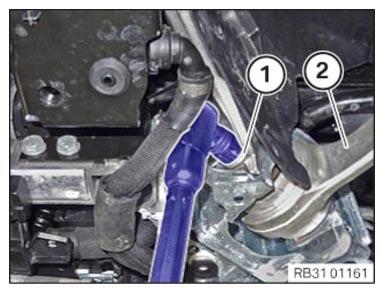

Loosen screw (1) for the tension strut (2) by one turn and secure.

TIGHTENING TORQUES SPECIFICATION

Tension strut to front axle support
M12 Replace bolt and cage nut. Tighten in normal position.	Snug torque	100 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.
