Removing the front subframe
WARNING:
Heavy component falling down or tipping.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before lowering or removing the front axle: Secure the engine in the installation position.
- For additional information see: 11 00 670 SECURING ENGINE IN INSTALLATION POSITION .
Remove left and right crash lever
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.
NOTE:
Perform the steps on the right and left side.
- Version A:

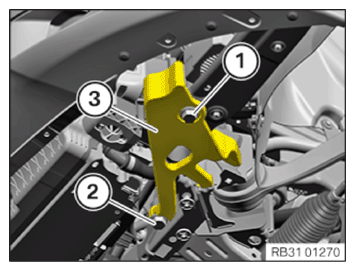

Release screws (1) and (2) .
Remove the crash lever (3) .
- Version B:

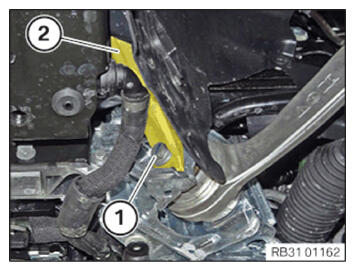

Release the screw (1) .
Feed out the crash lever (2) and remove.
NOTE:
Perform the steps on the left and right side.

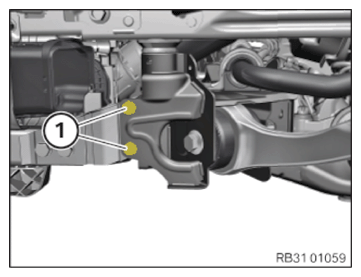

- Loosen screws (1)
.

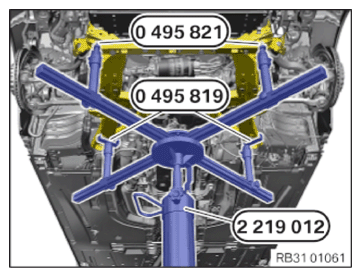

- Position the special tool 2 219 012
on the front subframe with the special tools 0 495 819 (31 5 253) and 0 495 821 (31 5 255)
.
The center of gravity of the front axle must be centrally above the special tool 2 219 012 !
- Support the front subframe with the special tool 2 219 012
.

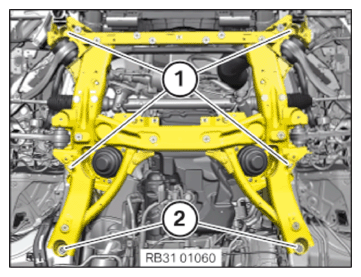

- Loosen screws (1)
and (2)
.
- Lower and remove the front subframe using the special tool 2 219 012 .
