Removing the engine wiring harness for sensor system 1
WARNING:
Working on 12 V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
NOTE:
RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
- Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.
Preliminary work
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING WINDSHIELD PANEL COVER .
- Refer to REMOVING THE CENTER COWL UPPER PART .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING ACOUSTIC COVER AT REAR .
- Refer to REMOVING THE DME CONTROL UNIT .
- Refer to REMOVING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to REMOVING THE CONTROL UNIT HOLDER .
- Refer to REMOVING TANK VENT VALVE .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to IF INSTALLED: REMOVING THE UNDERBODY PROTECTION OF THE STEERING SYSTEM .
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to DRAINING THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVING THE INTAKE PLENUM .

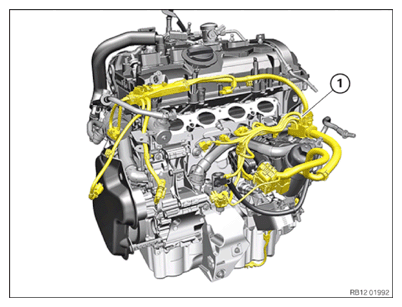

Engine wiring harness for sensor system 1
NOTE:
RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections .
Sheared wires can cause a short circuit .
Damage to wires when disconnecting connectors and plug connections .
Sheared wires can cause a short circuit .
- Do not pull on wires when disconnecting connectors and plug connections.
- Feed out the wiring harness section (1)
for the sensor system 1 from the holder (2)
and set it aside.
- Unlock and disconnect plug connections (1) .
- Unlock and disconnect plug connections (2) .
- Unlock plug connection (3) and disconnect.
- Unlock plug connection (4) and disconnect.
- Loosen the clamp (arrow).
- Feed out the wiring harness section (5)
for the sensor system 1 and set it aside.
- Loosen screws (1) .
- Unlock the lock (arrow).
- Remove the wiring harness section (2)
and put to one side.
- Loosen screws (1)
.
- Unlock plug connection (1) and disconnect.
- Loosen nut (2) .
- Guide the positive battery cable (3)
out of the clamp (4)
and lay to one side.
- Loosen the expanding rivet (1) .
- Undo fir tree clip (2) .
- Release the clamps (arrows).
- Loosen expanding rivet (1) .
- Lower the acoustic cover of the oil pan.
- Loosen expanding rivet (1) .
- Loosen the clamp (arrow).
- Lower the acoustic cover (2)
.
- Unlock plug connection (1) and disconnect.
- Unlock and disconnect plug connections (2) .
- Release the wiring harness section (3)
for the sensor system 1 from the clamp (arrow) and set it aside.
- Remove the wiring harness section (1) and put to one side.
- Loosen screw (2) .
- Unlock plug connection (3)
and disconnect.
- Feed out and remove the wiring harness section (1)
for the sensor system 1.
