Installing the power distribution box for the positive battery cables at the rear
WARNING:
Work on components with requirements for a secure energy supply
Ensure proper function after a repair
Ensure proper function after a repair
- Lines are allowed to have only one repair area.
- Notices in the diagnostic system circuit diagrams must be observed.
- When components are replaced, the notices in the applicable BMW parts catalogue must be observed.

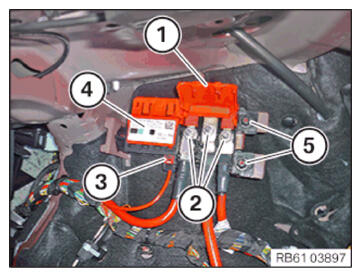

- Position the power distribution (4) correctly and tighten the nuts (5).
TIGHTENING TORQUES SPECIFICATION
| Power distribution box to body | ||
| Plastic nut | Tightening torque | 2.6 Nm |
- Connect connectors (3) and lock.
- Position the positive battery cables at the rear and tighten the nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Positive battery cable | ||
| Positive pole screw | tightening torque | 15 Nm |
- Close the cover (1).
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
