Installing the low power distribution box
WARNING:
Work on components with requirements for a secure energy supply
Ensure proper function after a repair
Ensure proper function after a repair
- Lines are allowed to have only one repair area.
- Notices in the diagnostic system circuit diagrams must be observed.
- When components are replaced, the notices in the applicable BMW parts catalogue must be observed.

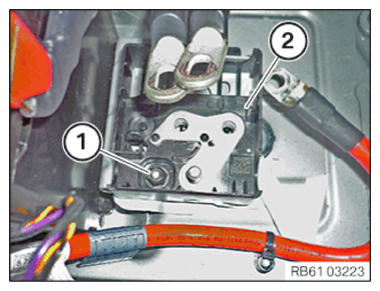

- Insert the power distribution box (2).
- Tighten plastic nuts (1).
TIGHTENING TORQUES SPECIFICATION
| Power distribution box | ||
| Plastic nut with flange | tightening torque | 2.6 Nm |

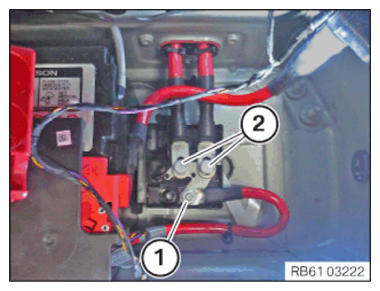

- Tighten the positive battery cable using the nut (1).
TIGHTENING TORQUES SPECIFICATION
| Positive battery cable | ||
| Positive pole screw | tightening torque | 15 Nm |
- Tighten the positive battery cables using the screws (2).
TIGHTENING TORQUES SPECIFICATION
| Positive battery cable | ||
| M8x16 screw | tightening torque | 15 Nm |

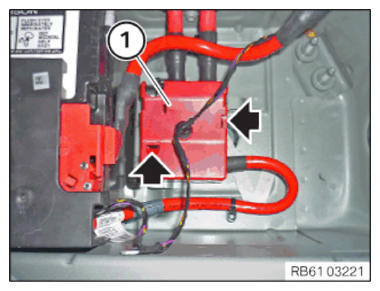

- Clip in the cover (1).
Follow-up work
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
