Install the front power distribution box
WARNING:
Work on components with requirements for a secure energy supply
Ensure proper function after a repair
Ensure proper function after a repair
- Lines are allowed to have only one repair area.
- Notices in the diagnostic system circuit diagrams must be observed.
- When components are replaced, the notices in the applicable BMW parts catalogue must be observed.

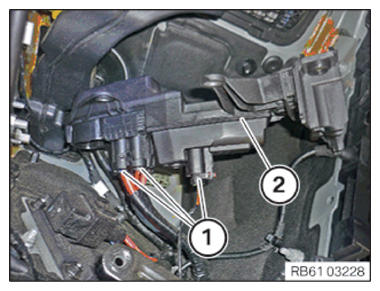

- Connect the connector (1) to the power distribution box (2) and lock it.

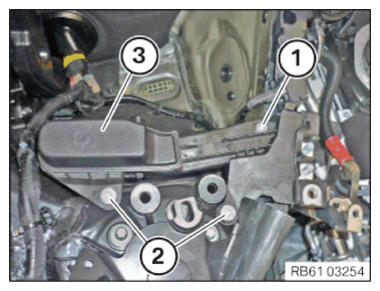

- Position the power distribution box (3) and feed it in downwards.
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Front power distribution box | ||
| M8x35 screw | tightening torque | 13 Nm |
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Front power distribution box | ||
| Screw TS5x16 | Tightening torque | 2.5 Nm |

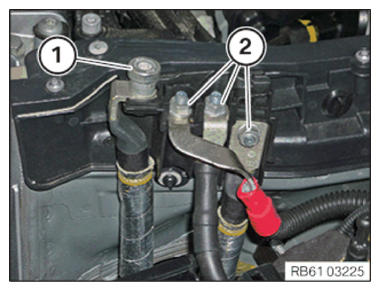

- Feed in the associated cable and tighten the nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Positive battery cable | ||
| Flange nut M8 | tightening torque | 15 Nm |
- Insert corresponding cable and tighten screw (1).
TIGHTENING TORQUES SPECIFICATION
| Auxiliary terminal for jump starting | ||
| Positive pole screw | tightening torque | 15 Nm |

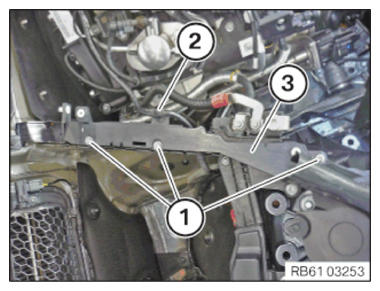

- Position the cover (3) correctly and tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Front power distribution box sealing frame | ||
| Bolt RF5x25 | tightening torque | 2.5 Nm |
- Secure the cable clips (2).

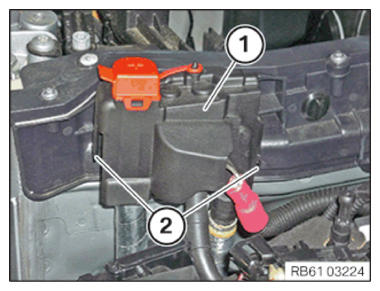

- Feed in the cover (2) in a downwards direction.
- The detents (1) must be locked correctly.
Follow-up work
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
