Installing the rear power distribution box

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

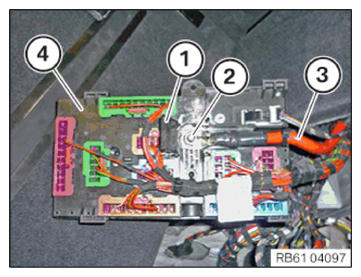

Position the positive battery cable (3) at the power distribution (4).
Tighten nut (2).
Close the cover (1).

NOTE: TECHNICAL INFORMATION
Fuses can be pushed out of their correct end positions when connecting the connectors.
While connecting the connector, counter support it against the fuse side.
After locking the connector, check if the fuse layout is complete and ensure the correct end position of the individual fuses.

Courtesy of BMW OF NORTH AMERICA, INC.

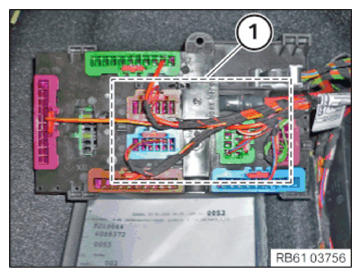

Connect all connectors and lock.

NOTE: TECHNICAL INFORMATION
Attention! Wiring harnesses must be laid and fixed in such a way that no tensile loads act on the wiring harness and its plug connections.

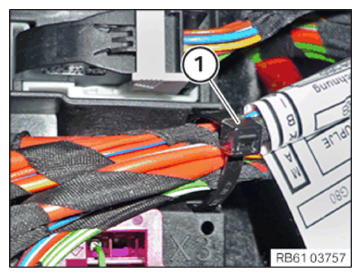

Position the wiring harness (1) in such a way that there is no tensile load on the connector and wiring harness.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in the new cable ties (1) through both of the openings on the power distribution and tighten them.

Courtesy of BMW OF NORTH AMERICA, INC.

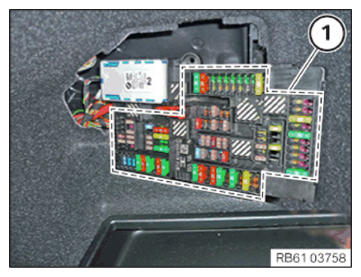

Check all fuses for their correct end position and lock them in place correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Position the power distribution (2) correctly and engage it into the holder (3).

Detents (1) must engage correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
Refer to ACTIVATING ELECTRICAL SYSTEM .
Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
