Drawing off oil in the rear differential

WARNING: Hot fluids .
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

WARNING: Contact with hazardous fluids .
Hazardous to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

NOTE: RISK OF DAMAGE
Damage to rear differential .
Failure to comply with the oil specifications can result in serious damage to the rear differential .

After completion of repair work, check the transmission oil level in the rear differential.
Use only the approved final drive transmission oil.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

CAUTION: Contact with hazardous substances .
Health impairment .

Note and comply with the Safety Instructions on the containers and the instructions on the manufacturer's safety data sheet.
Conduct all work in appropriate personal protective equipment only.

CAUTION: Acid combustions may result from skin contact with oil or inhaling oil vapors .
Risk of acid burns from contact with oil!

Wear safety goggles and hand protection.
Ensure sufficient ventilation.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Use the special tool 0 493 337 (00 2 080) for drawing off the rear differential fluid.

Courtesy of BMW OF NORTH AMERICA, INC.

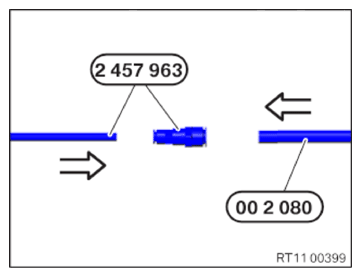

Connect the special tool 2 457 963 with the special tool 0 493 337 (00 2 080) .

Courtesy of BMW OF NORTH AMERICA, INC.
Open the oil filler plug (1) .
Draw off rear differential oil.

Courtesy of BMW OF NORTH AMERICA, INC.
