Installing the electromechanical steering gear

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage to the track rods or the electromechanical steering gear .
Holding the electromechanical steering gear by the track rods can damage the track rods or the electromechanical steering gear .

Hold the electromechanical steering gear only by its housing.

Install/position the electromechanical steering gear with the help of an assistant.
Renew screws (1).
Parts: Screws
Only position all the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

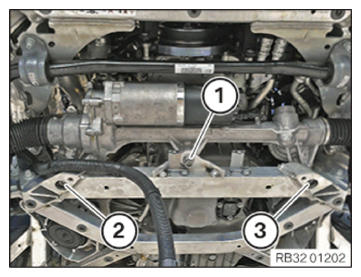

Tighten the screws of the electromechanical steering gear in the marked order from (1) to (3).

Be sure to follow the tightening sequence!

TIGHTENING TORQUE SPECIFICATIONS

Electromechanical steering gear to front subframe
M12 Renew screw.	Tightening torque Angle of rotation	100 Nm 90°

Fig 1: Electromechanical Steering Gear Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to SECURING THE TIE ROD ON THE LEFT AND RIGHT OF THE SWIVEL BEARING .
Refer to ATTACHING AND FIXING THE WIRING HARNESS OF THE EPS .
Refer to SECURING THE UNIVERSAL JOINT TO THE STEERING GEAR .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE FRONT SPOILER .
Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
Refer to DISCONNECTING ALL BATTERY GROUND LEADS . .
Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
Refer to COMMISSIONING (INITIALIZATION) OF THE ELECTROMECHANICAL STEERING .
