Removing the radial shaft seal for the output flange
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
When the engine is stopped after the completion of trip, it may be necessary to run the electric fan. In rare cases, operation of the electric fan can last up to 11 min. This protects the components. In this case, replacing the electric fan will not remedy the problem!
When the engine is stopped after the completion of trip, it may be necessary to run the electric fan. In rare cases, operation of the electric fan can last up to 11 min. This protects the components. In this case, replacing the electric fan will not remedy the problem!
Preliminary work
- Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING TRANSMISSION CROSS-MEMBER .
- Refer to REMOVING THE TANK COVER .
- Refer to REMOVING THE LEFT THRUST FIELD .
- Refer to REMOVING THE REAR HEAT SHIELD .
- Refer to REMOVING FRONT HEAT SHIELD .
- Refer to PARTIALLY LOOSENING THE PROP SHAFT .
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
RISK OF DAMAGE
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.
- Use only the approved transmission oil.
- Check the transmission oil level after completing the repair.
- Brace the output flange with the special tool 0 491 440 (23 0 020) .
- Undo collar nut with the special tool 2 360 126 .

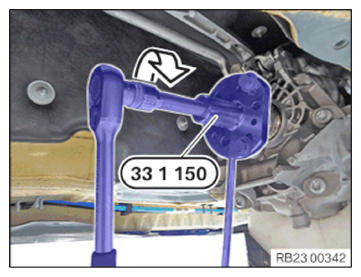

- Screw in the output flange with the special tool 0 492 083 (33 1 150) in direction of arrows and detach from the output shaft.
- Unscrew screws (1) on the special tool 0 494 546 (23 3 210) .
- Push special tool 0 494 546 (23 3 210) over the output shaft.

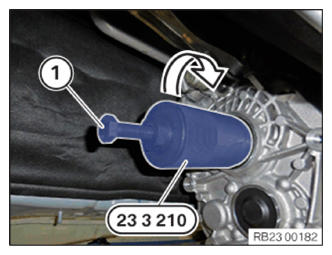

- Screw special tool 0 494 546 (23 3 210) into the radial shaft seal in the arrow direction until the special tool is securely connected to the radial shaft seal.

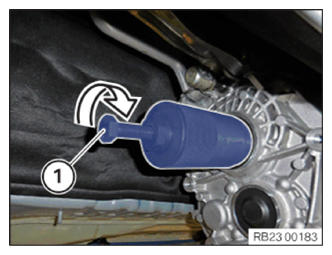

- Turn screw (1) into special tool 0 494 546 (23 3 210) in the arrow direction until the radial shaft seal is pulled out of the transmission housing.
- If necessary, remove sealing ring spring.
