Removing the guide tube for the disengagement module
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
When the engine is stopped after the completion of trip, it may be necessary to run the electric fan. In rare cases, operation of the electric fan can last up to 11 min. This protects the components. In this case, replacing the electric fan will not remedy the problem!
When the engine is stopped after the completion of trip, it may be necessary to run the electric fan. In rare cases, operation of the electric fan can last up to 11 min. This protects the components. In this case, replacing the electric fan will not remedy the problem!
Preliminary work
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING SUSPENSION STRUT BRACE .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE FRONT SPOILER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE FRONT-END STRUT .
- Refer to REMOVING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to REMOVING THRUST FIELD .
- Refer to REMOVING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to PARTIALLY REMOVING THE COOLANT EXPANSION TANK OF THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVING THE OXYGEN SENSOR MONITOR FOR THE CYLINDERS 4 TO 6 .
- Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING TRANSMISSION CROSS-MEMBER .
- Refer to REMOVING THE TANK COVER .
- Refer to REMOVING THE LEFT THRUST FIELD .
- Refer to REMOVING THE REAR HEAT SHIELD .
- Refer to REMOVING FRONT HEAT SHIELD .
- Refer to PARTIALLY LOOSENING THE PROP SHAFT .
- Refer to REMOVING THE MANUAL TRANSMISSION (GS6L55TZ) .
- Refer to REMOVING THE DISENGAGEMENT MODULE .

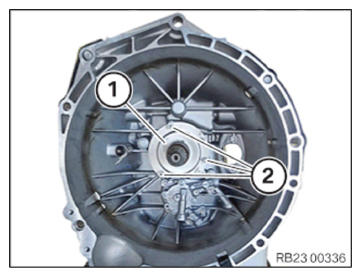

- Loosen screws (2) .
- Remove the guide tube (1) .
