Install adapter
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION

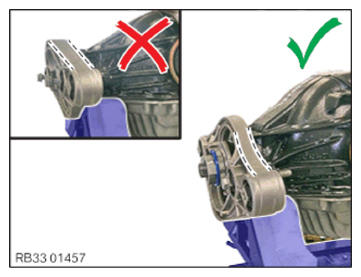

Incorrect assembly is possible. Ensure correct installation position.
Incorrect assembly is possible. Ensure correct installation position.
- Position the adapter on the rear axle differential.
- Replace screws (1) and (2) for adapter (3).
Parts: Screws
- Screw in screws (1) and (2) a few turns.
- Tighten the screws (2).
TIGHTENING TORQUE SPECIFICATIONS
| Adapter of front rear axle differential to rear axle differential | ||
| M12 Replace screw. | Tightening torque | 120 Nm |
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Adapter of rear axle differential to rear axle support | ||
| M12 Replace screw. | Tightening torque Angle of rotation |
100 Nm 90° |
- Lower special tool 0 496 009 (33 5 200) using special tool 2 219 012 and keep it aside.
- Position ground cable (2) on the rear axle differential.
- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Ground strap on rear axle differential | ||
| M12 | Tightening Torque | 19 Nm |
Follow-up work
- Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
- Refer to INSTALLING THE REAR HEAT SHIELD .
- Refer to INSTALLING THE LEFT THRUST FIELD .
- Refer to INSTALLING TANK COVER .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
