Installing the vibration damper

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Radial shaft seal damage .
When fitting the vibration damper, the radial shaft seal may be damaged .

It is imperative to use the special tool when fitting the vibration damper.

NOTE: TECHNICAL INFORMATION
When removing/refitting or replacing the vibration damper, the radial shaft seal must also be replaced.

Clean the sealing surface (1) from oil and contamination.

Courtesy of BMW OF NORTH AMERICA, INC.

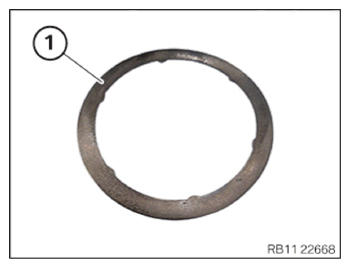

Replace the lock washer (1).
Parts: Lock washer

Courtesy of BMW OF NORTH AMERICA, INC.

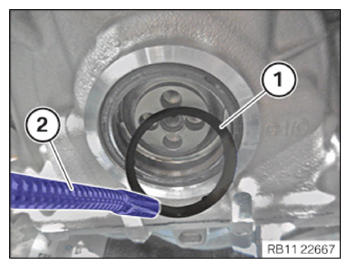

Feed in the lock washer (1) using a commercially available magnet (2) and install it.

Courtesy of BMW OF NORTH AMERICA, INC.

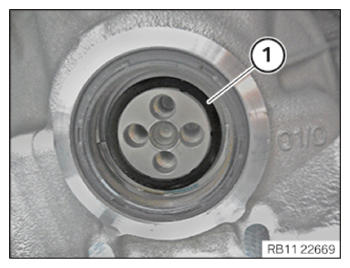

Make sure the lock washer (1) is installed correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

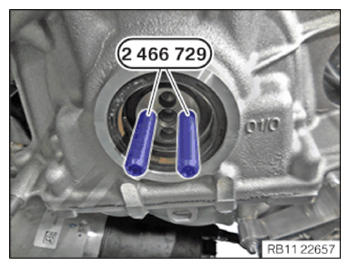

Screw in the special tool 2 466 729 and hand tighten it on the crankshaft.

Courtesy of BMW OF NORTH AMERICA, INC.

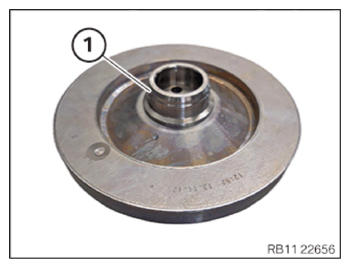

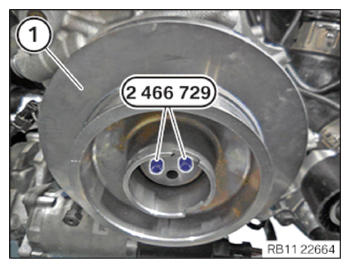

Insert and install the vibration damper (1) on the special tool 2 466 729 .

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the screw (1).
Parts: Screw

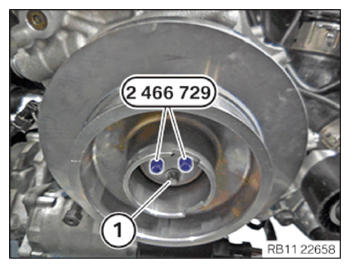

Hand-tighten the bolt (1).
Guide the special tool 2 466 729 out and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the bolts (arrows).
Parts: Screws

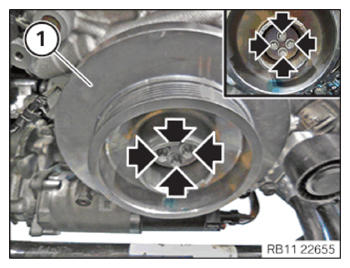

Tighten the screws (arrows) on the vibration damper (1).

TIGHTENING TORQUE SPECIFICATIONS

Vibration damper to crankshaft
M10 x 65 Replace screws.	Joining torque	40 Nm
M10 x 65 Replace screws.	Angle of rotation	120°

Courtesy of BMW OF NORTH AMERICA, INC.

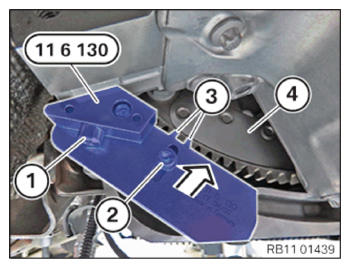

Loosen screw (2).
Slide the counter support with the bolt (2) down until the teeth (3) are no longer engaged in the gearing of the flywheel (4).
Release the screw (1) and feed out and remove special tool 0 496 595 (11 6 130) .

Courtesy of BMW OF NORTH AMERICA, INC.
